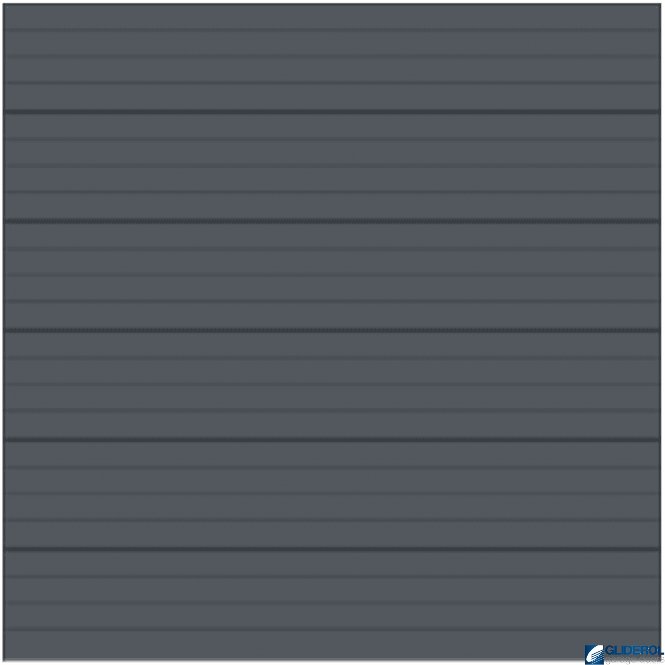

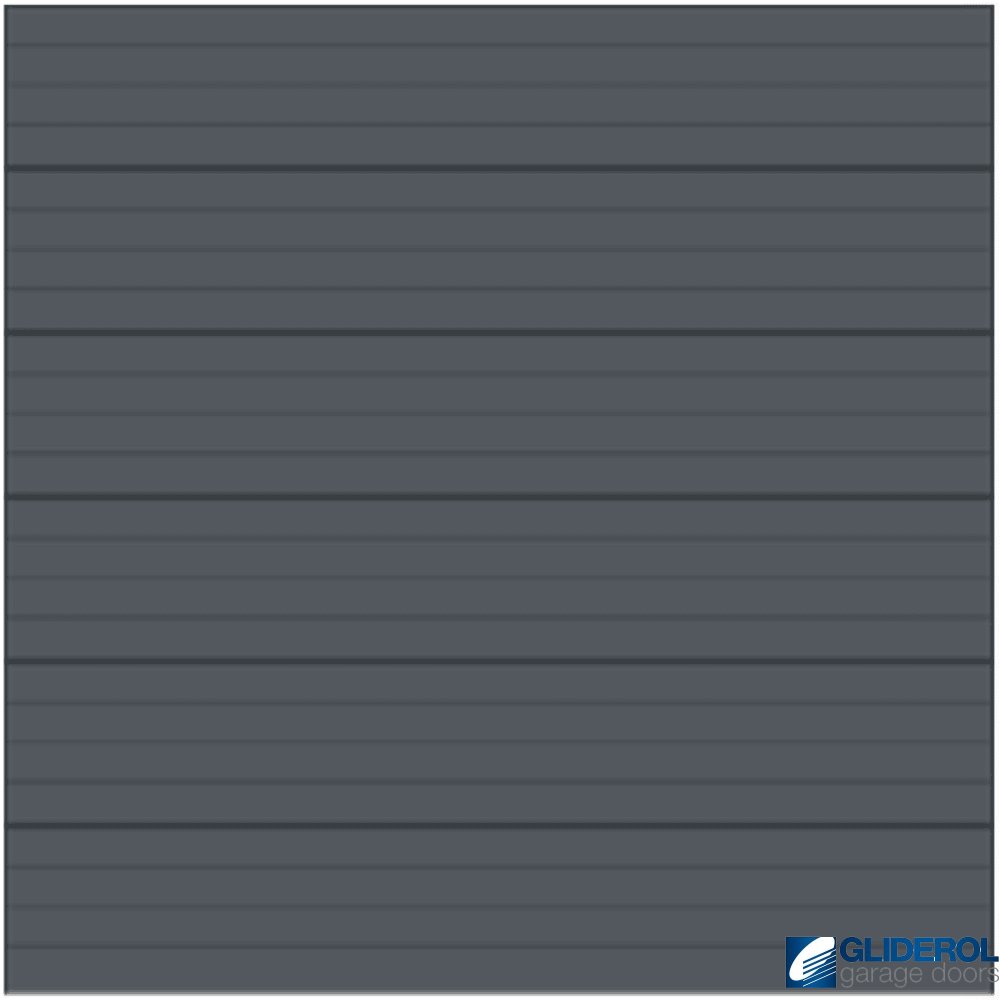

Gliderol ANTHRACITE (RAL7016) Industrial Sectional Door
Gliderol ANTHRACITE (RAL7016) Industrial Sectional Door

Gliderol ANTHRACITE (RAL7016) Industrial Sectional Door

Code: SID-ANTHRACITE
  • Now From 1.444,05 € (inc. VAT)
Item in Stock   |   Usually dispatched within 24 hours
Loading...
Door Width = Opening width. Door Height = Opening height.

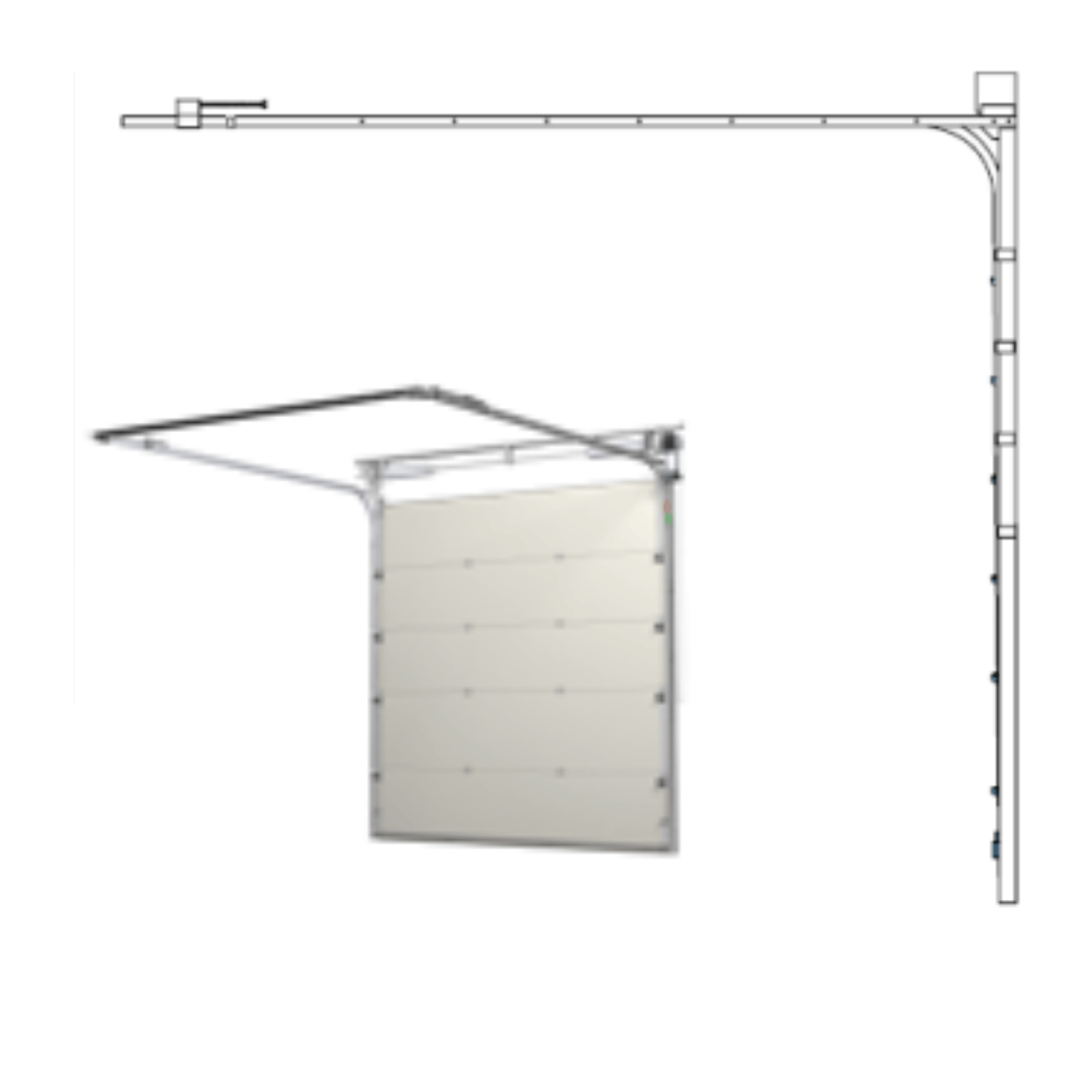

Standard Lift Track - recommended if you have up to 1 metre of headroom above the opening. Minimum headroom requirement is 430mm. If you don't have enough headroom you can select 240mm reduced headroom option.

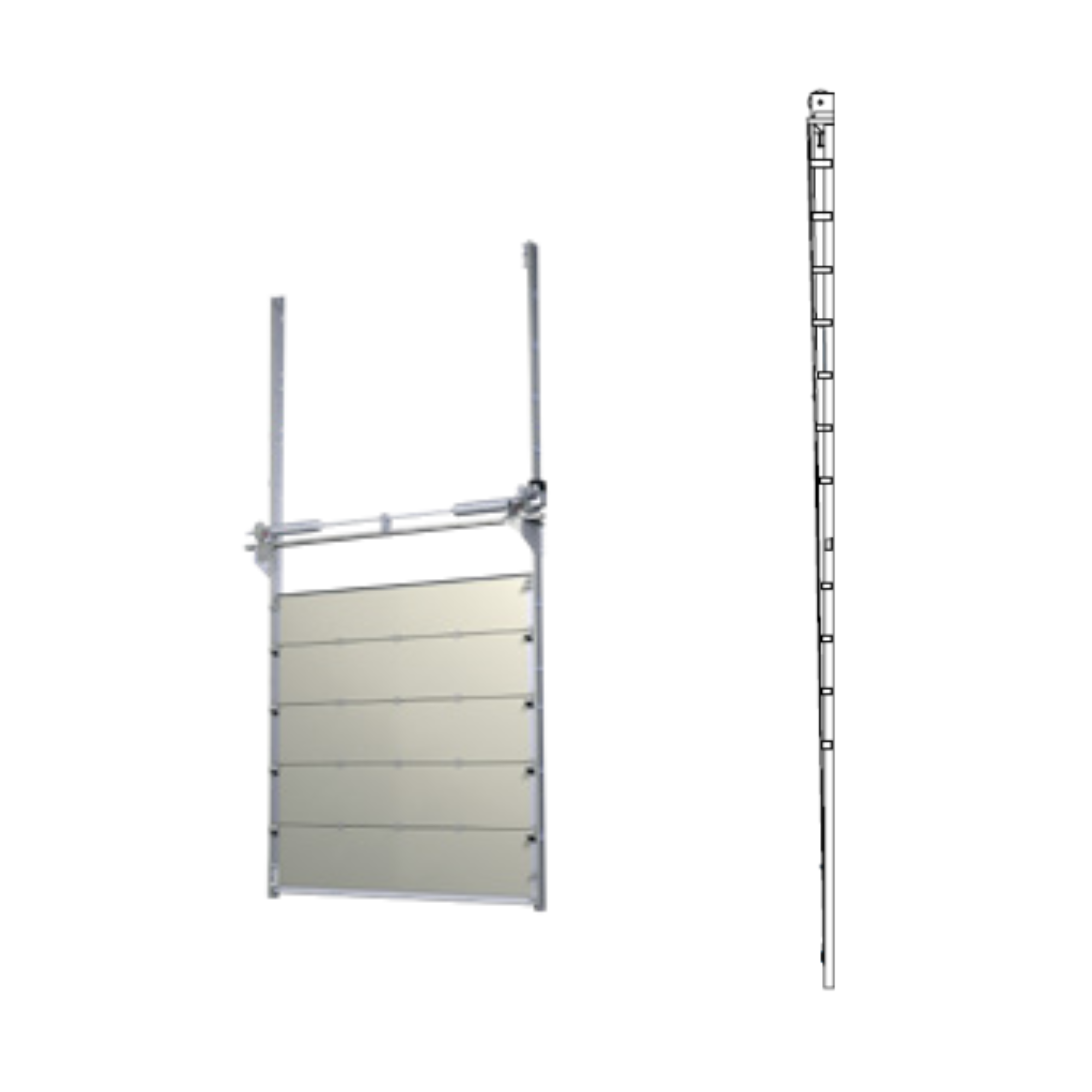

Vertical Lift Track - recommended if you have enough headroom for the door to raise fully up above the opening.

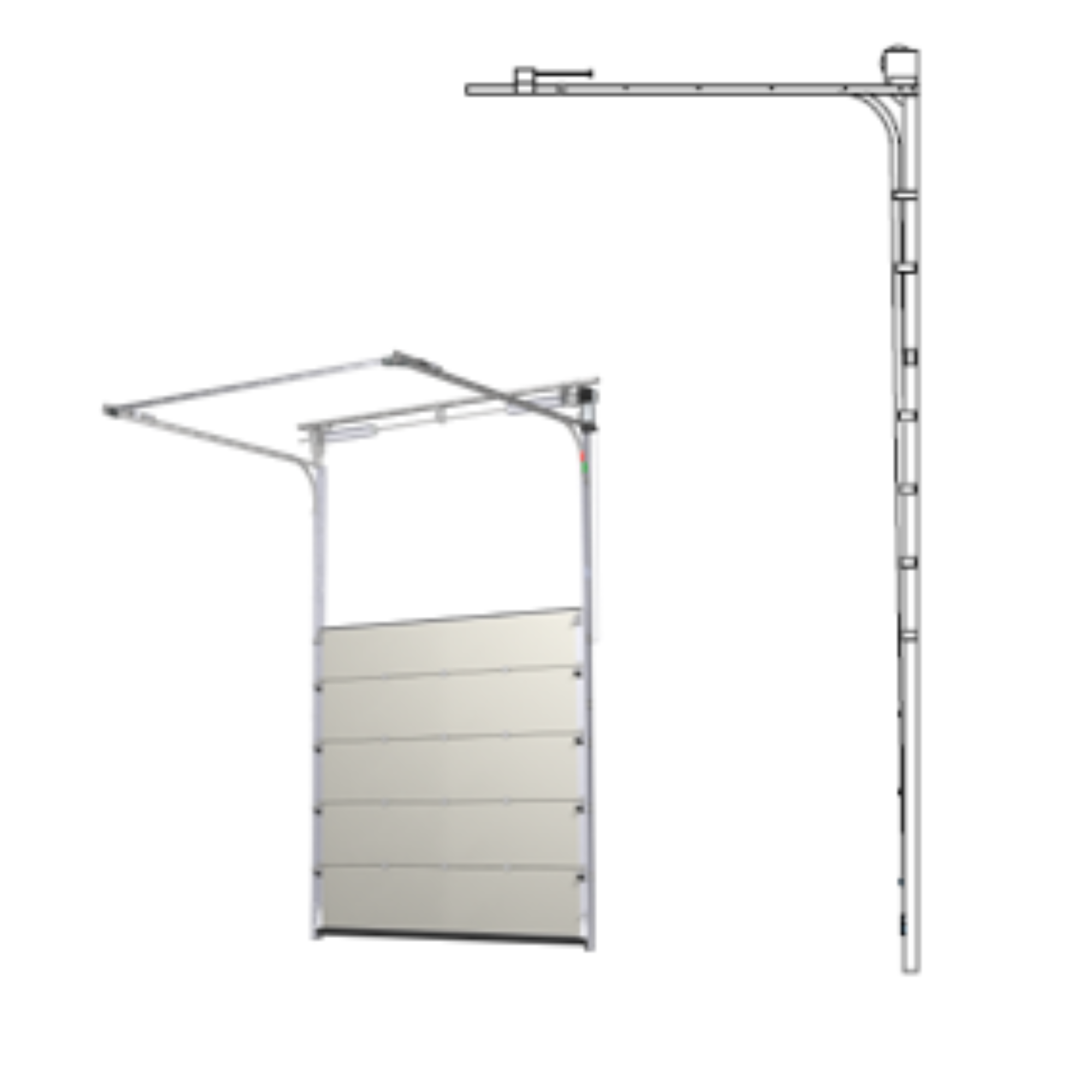

High Lift Track - is the most common option where you have a lot of headroom above the opening but not enough for a vertical lift track. Recommended if you have more than 1 metre of headroom. A high lift track will allow your door to raise above the opening, closer to the roof before turning horizontally into the space.

- If you are replacing an existing door it is really important that you measure the existing spring shaft centre line (the measurement from the floor to the existing shaft/barrel that the springs are attached to). This is so the new door can utilise the existing fixing points within the building. We recommend using a laser measure for precision.

Existing spring shaft centre line is the measurement from the floor to the existing shaft/barrel that the springs are attached to. We recommend using a laser measure for precision. This is so the new door can utilise the existing fixing points within the building.

Headroom requirement above the clear opening: lift + 400 mm, where lift is defined as the dimension from the bottom face of the lintel to the bottom face of the horizontal tracks.

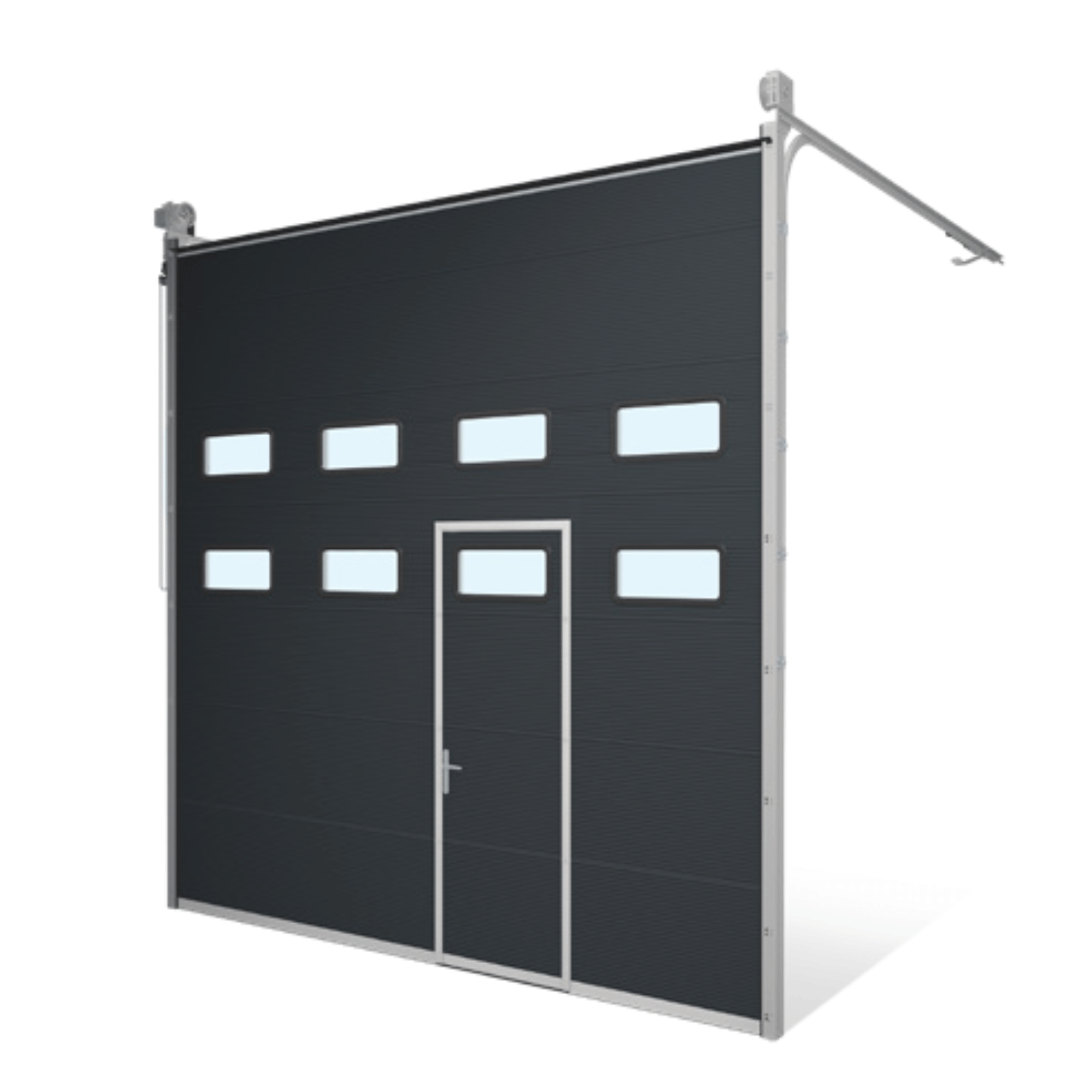

One of the best industrial sectional doors on the market. Offers superior heat insulation and sound absorption with their sleek, micro-profiled panels. These state of the art industrial sectional doors are crafted for durability and precision. All our industrial doors come with reinforced profiles.

Available in 19 colours at no extra cost. Thick 40mm insulated panels as standard with 60mm and 80mm thick panels available on request.


These industrial doors are fully CE UK-CA certified to the highest standard. EN13241 compliant.


Automatic door come with an industry leading electric GFa motor with TS971 deadman controls. Manual doors come with a metal chain hoist 1:4 ratio.


Before we manufacture your industrial sectional door we will provide you with full CAD drawings to approve. We manufacture bespoke made-to-measure industrial doors to any specification. If you don’t find what you need, contact us directly for a bespoke quotation.


  • Maximum size available is 8m wide x 6m high (surface area 48 m2).
  • Thermally insulated 40mm thick, galvanised steel sandwich panels, insulated with polyurethane foam (CFC-free).
  • U-value based on a door size 5m x 5m is 0.99 W/m2 K.
  • Wind load resistance class 3-4 according to EN 12424, or up to 12-13 Beaufort (118 - 149 km/h).
  • Wind and waterproof connections between the sections.
  • The interior side of the panels has a horizontal profiling and a polyester-coating in RAL9002.
  • Steel cables with sixfold safety built in as standard.

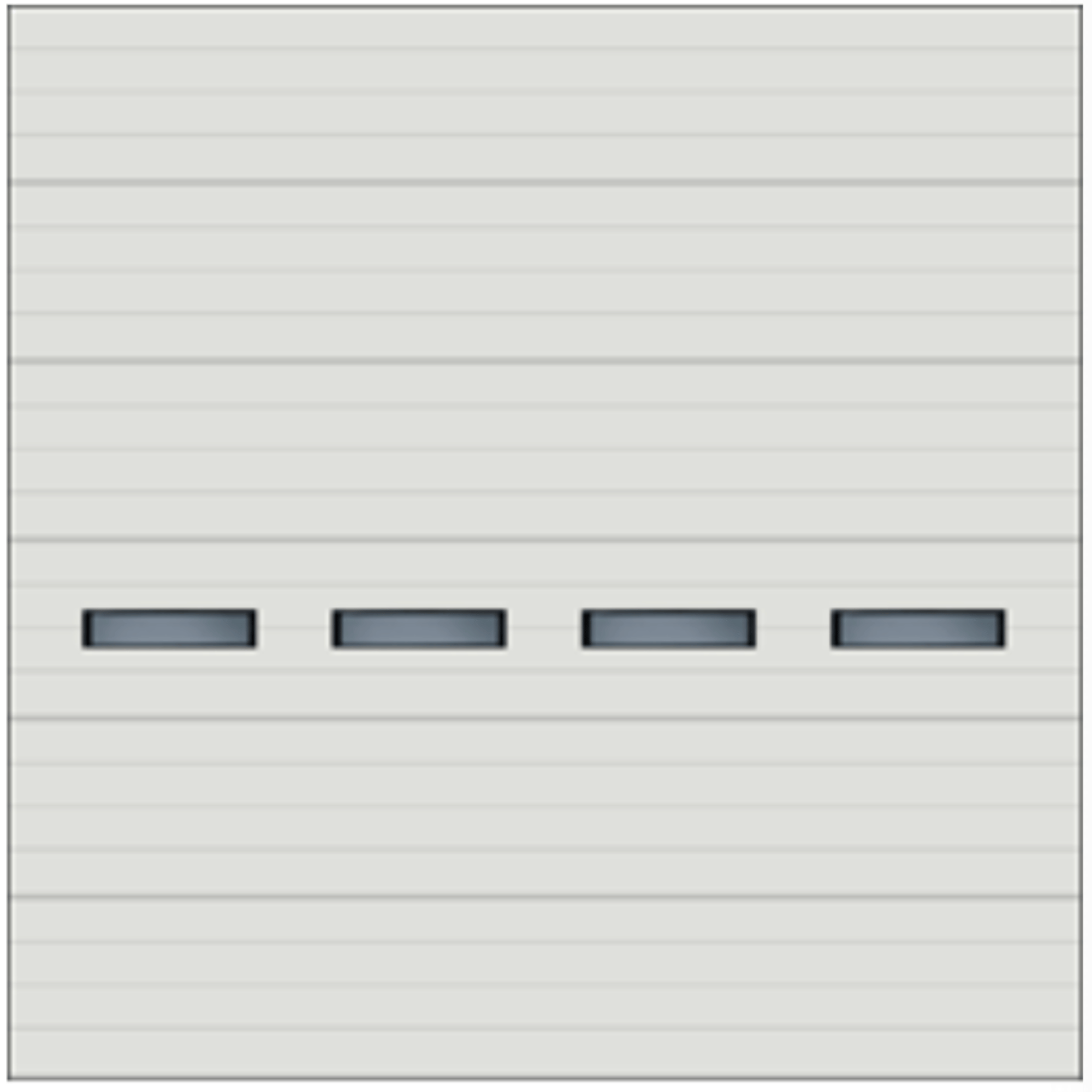

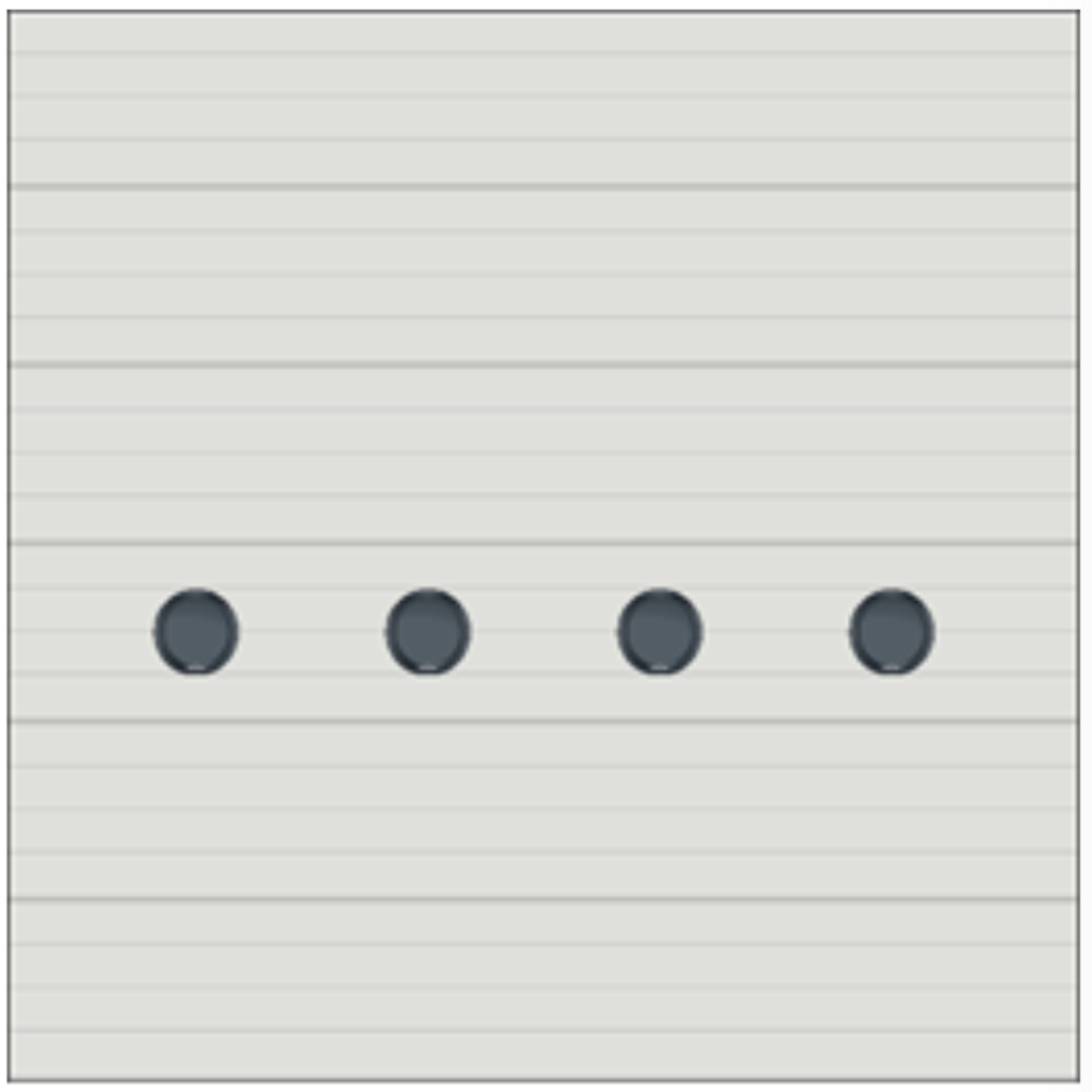

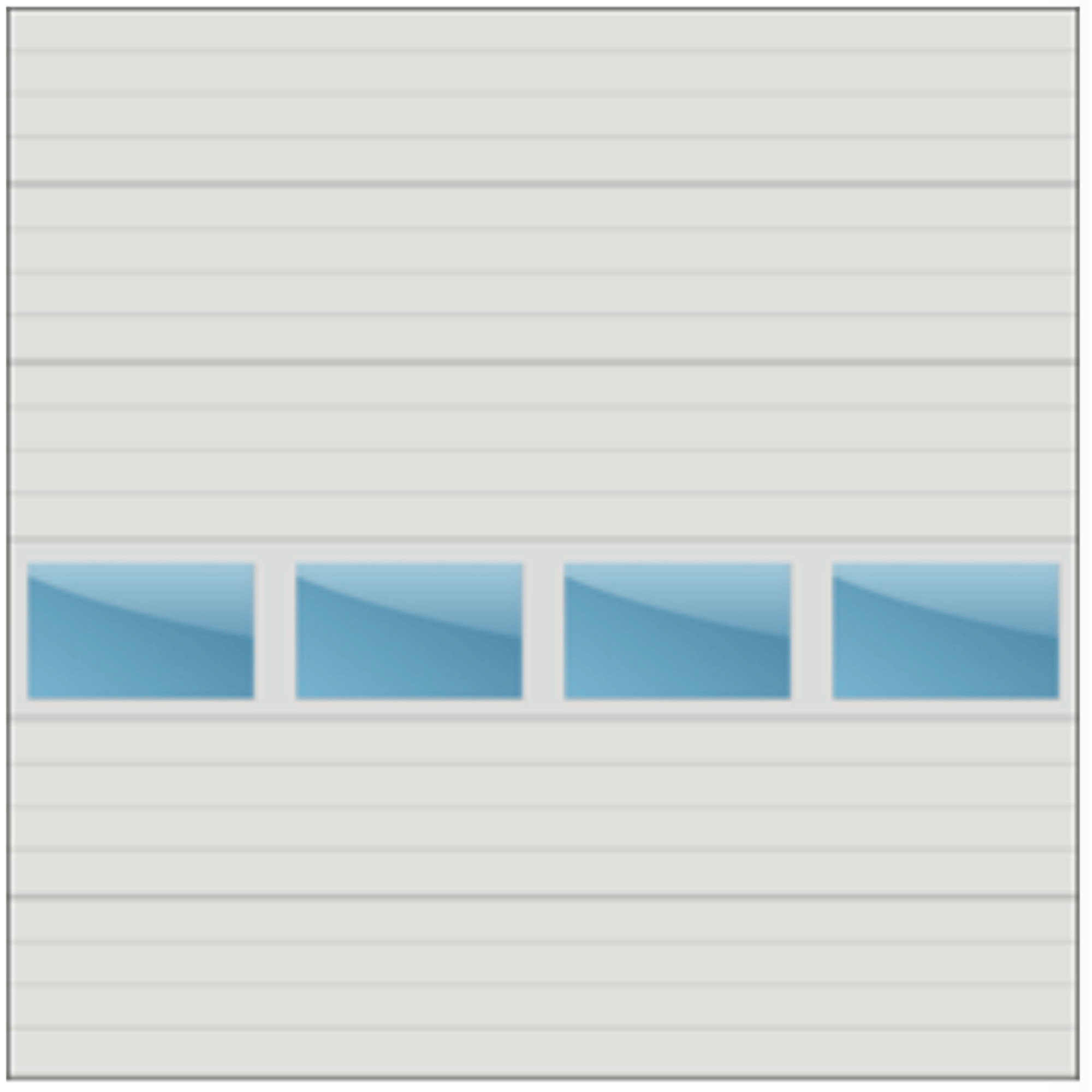

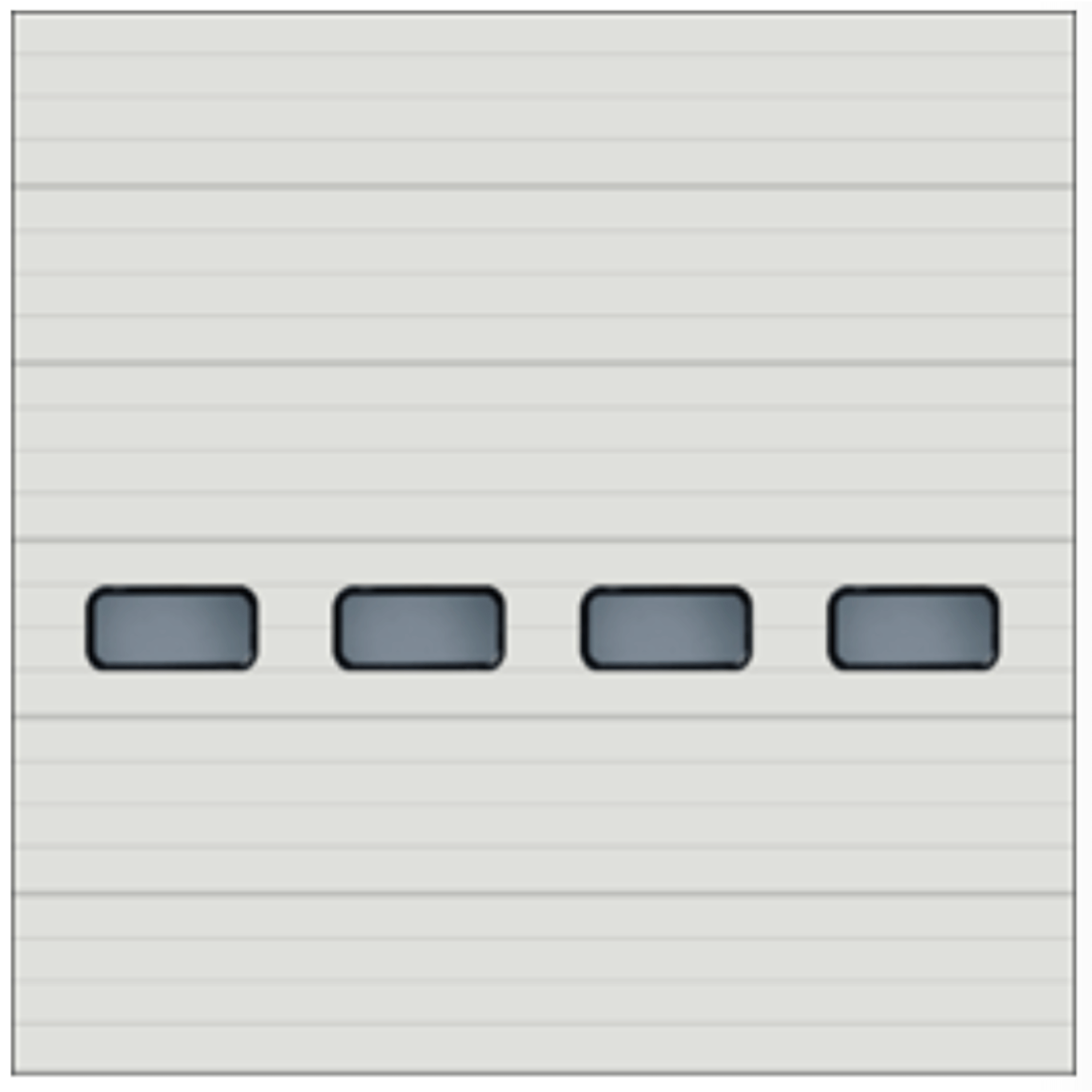

The most popular window option is acrylic double glazed rectangular black framed with rounded corners (630mmx305mm). Slimline burglar resistant windows, full aluminium framed or attractive round windows are also available.


Technical details electric drive

• GFa motor and control box TS971 with deadman controls.

• Single or three phase power options.

• Control voltage: 24Vdc.

• IP54 Protection.

• Emergency hand chain hoist at operating height.

• Spring break protection.

• Anti lift protection.

• Status and information display (including any recent faults).

• Maintenance-cycle counter.


Headroom and side-room requirements:

The doors come with front torsion springs as standard and require a minimum of 475mm headroom.

Manual doors require 220mm side-room for the chain hoist side and 80mm on the opposite side.

Automated doors require 250mm-480mm* side-room on the motor side and 80 mm on the opposite side (*depending on track specification).


Dark colours should be avoided for wider steel doors facing the sun, as possible slat deflection can damage the door.


The design options are virtually limitless, allowing each door to be tailored precisely to its intended application. Contact us if you can’t find what you’re looking for :)
