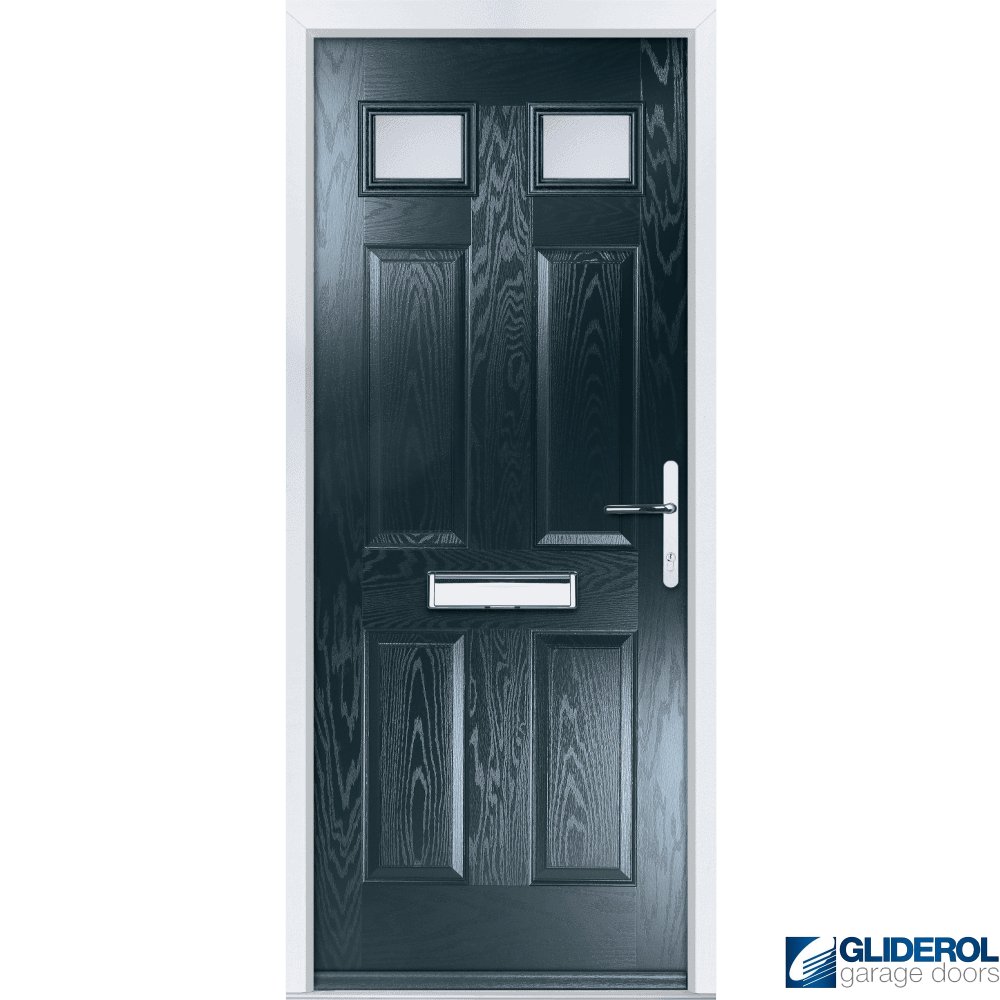

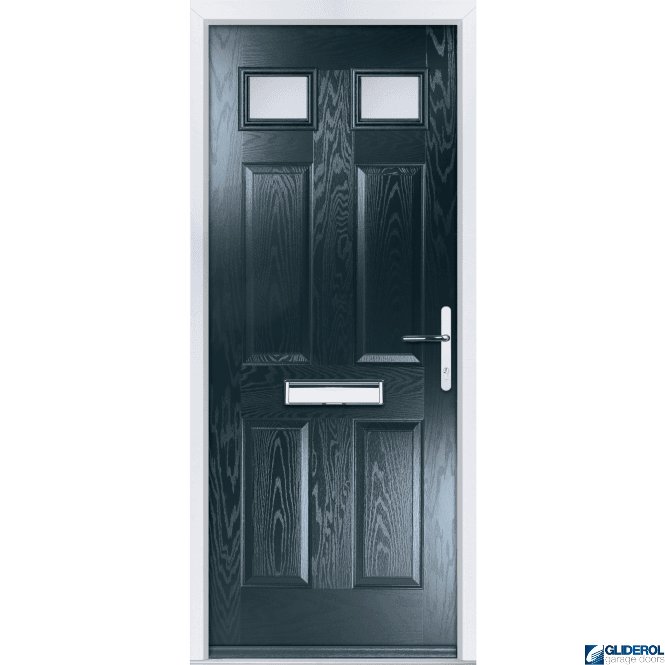

Gliderol Mowbray 2 FIRE-RATED (FD30) door ANTHRACITE

Gliderol Mowbray 2 FIRE-RATED (FD30) door ANTHRACITE

Code: E-FDoor4panel2square-Anthracite
  • 1.637,26 € (inc. VAT)
  • RRP 2.338,93 € (inc. VAT)
  • Save 701,68 € (inc. VAT) 30%
Item in Stock   |   Usually dispatched within 24 hours
Loading...
Door Width = Over Frame Width. Door Height = Over Frame Height.

An External door will come with a colour matched rain drip strip at the bottom

The 150mm cill has a height of 30mm and sits under the frame. As the door frame has a depth of 70mm the cill will protrude from the front of the frame by 80mm. See measuring guide for image.

Please read the 'Measuring guide' for full details.

A frame extender/add-on is an additional frame section that can be added to the top of the door if required. If you order a 15mm top add-on, the door would be 15mm smaller to allow for the add-on in your overall height.

E.g you may need an add-on if the internal wall comes in a lot further than the exterior wall.

If you require an add-on to extend the height of the door you can purchase an additional add-on as a separate product.
Upgrade your home’s first impression with our high-quality fire-rated entrance doors (FD30).

The product range has been third-party certified and is manufactured under a strict factory production control system. Classification to 30-minute fire integrity and smoke leakage. Includes an automatic door closer as standard.

Fully tested for thermal and acoustic performance.

Looking like real wood, Gliderol’s doors are manufactured in the UK using thick impact-resistant skins, resistant to knocks and dents.

✅ Exceptional Security.

✅ Outstanding Energy Efficiency.

✅ 10 year guarantee - Low Maintenance, no painting and no fuss. Just wipe clean with a damp cloth and your door will look great for years to come.

✅ Fast FREE delivery. Made to measure doors delivered in 2 to 3 weeks.

  • Low threshold in aluminium for accessibility.
  • GU Multipoint slam lock with intumescent protection.
  • Includes UAP Kinetica Euro Cylinder BSi 3* Kitemarked.
  • Insulated glass unit, if required, is argon filled with 7 mm Pilkington Pyrodur and 6.8 mm thick Pilkington K Clear laminated glass or Pilkington K P1A Stippolyte glass.
  • Certifire approved TS008 letterplate with security cowl if required.
  • 3 x Grade 13, CE marked stainless steel butt hinges in chrome with intumescent protection.
  • Certifire approved Dorma TS72V arm door closer.

Doors with top lights are also available. Please contact us directly if you can't find what you're looking for.

Note:
- Min width including frame (850mm).
- Min height including frame (2045mm excluding the 30mm sill).
- Additional 15mm frame extenders can be purchased separately if your height is greater than the maximum.
- Internal door and frame comes in white as standard.
- Hinges will be white as standard for doors which open inwards, to match the white internal door.

PLEASE ENSURE YOU HAVE FULLY READ THE 'MEASURING GUIDE' BEFORE PLACING AN ORDER. This is a made-to-measure door, once manufactured, cancellations or returns are not accepted.

Frame sizes do not include fitting tolerances - this must be allowed for if required. - Standard fitting tolerance would be to remove 10-20mm off the width and 5-10mm off the height.


PLEASE ENSURE YOU FULLY READ THIS 'MEASURING GUIDE' BEFORE PLACING AN ORDER! This is a made-to-order door, once manufactured, cancellations or returns are not accepted.


Entrance doors are supplied with a pre-assembled frame so the measurements you supply will be for the total width and height required including the frame, the sill, any side panels, and any frame extenders/add-ons.


Measure the external structural opening, take the width measurement in 3 places, across the top, middle and bottom and the height in 3 places. You should use the shortest measurement for both width and height and then take a little more off to allow for fitting tolerance. Usually 20mm off the width (2x 10mm each side) and 10mm off the height. This is the size you should order.






Height (red) - measure from the underside of the sill to the underside of the brickwork at the top and note the shortest measurement. Sill is 30mm deep.


Width (green) - measure from brick to brick and note the shortest measurement.


Diagonal measurement (blue in top image) - Ensure the opening is square by measuring the diagonals as shown in blue. There shouldn’t be more than 5mm difference between each measurement. If there is more than 5mm difference you may need to allow for a bit more fitting tolerance.


Frame extenders / add-ons (Do you need them?)


Measure the inside internal door sizes as you did from the outside. Internal measurements are usually less due to internal plaster. See image below.

The hinges start 25mm from the edge of the frame. If your internal frame width is more than 70mm shorter (35mm each side) than the external tight brick to brick measurement you will likely need a frame extender so your hinges avoid the internal plaster. 70mm = 2x25mm from the edge of the frame to the hinges plus a fitting tolerance of 20mm.


E.g If your external brick to brick width is 1000mm and your internal width is 910mm (90mm shorter).

You would order the door 980mm to allow for 20mm fitting tolerance (10mm each side).

This means you have a 70mm (35mm each side) difference between the internal measurement of 910mm and the door you have ordered of 980mm. In that instance you would need to buy a frame extender to push the door so the hinge doesn't foul the plaster as per the image below.

If your internal measurement is more than 50mm shorter than the door you will need a frame extender.


Frame extenders/add-ons can be added to either side of the door or both sides if required.


Example without frame extender/add-on:

Example with frame extender/add-on:





Threshold & Sill options
